These assembly plans were drawn up using 3d Studio Max. The design of this wooden kart is similar to the wooden kart on this website, however has a few more details and goes through the assembly of all the components more detailed and graphically.

< BACK       << HOME


Drg. No.:1    This is an overview of the completed and assembled Wooden Kart.


Drg. No.:2    Front Steering of Kart -1


Drg. No.:3    Front Steering of Kart -2


Drg. No.:4    Front Steering of Kart -3


Drg. No.:5    Front Steering of Kart -4


Drg. No.:6    Front Steering of Kart -5


Drg. No.:7    Front Steering of Kart -6


Drg. No.:8    Front Steering of Kart -7


Drg. No.:9    Front Steering of Kart -8


Drg. No.:10    Front Steering of Kart -9


Drg. No.:11    Front Steering of Kart -10

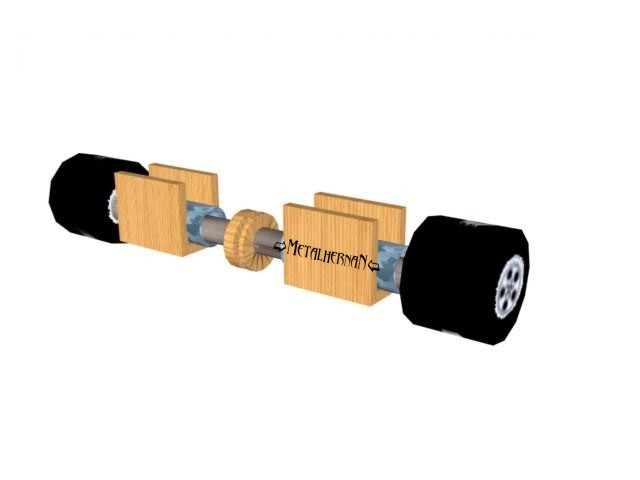

Drg. No.:12    Rear of the Kart -1


Drg. No.:13    Rear of the Kart -2


Drg. No.:14    Rear of the Kart -3


Drg. No.:15    Rear of the Kart -4


Drg. No.:16    The Drive -1


Drg. No.:17    The Drive -2


Drg. No.:18    The Drive -3

Thats all the graphical diagrams of the assembly of the main parts of the wooden kart. Hopefully they provide some answers to your problems in putting a similiar wooden kart togethor yourselves.
